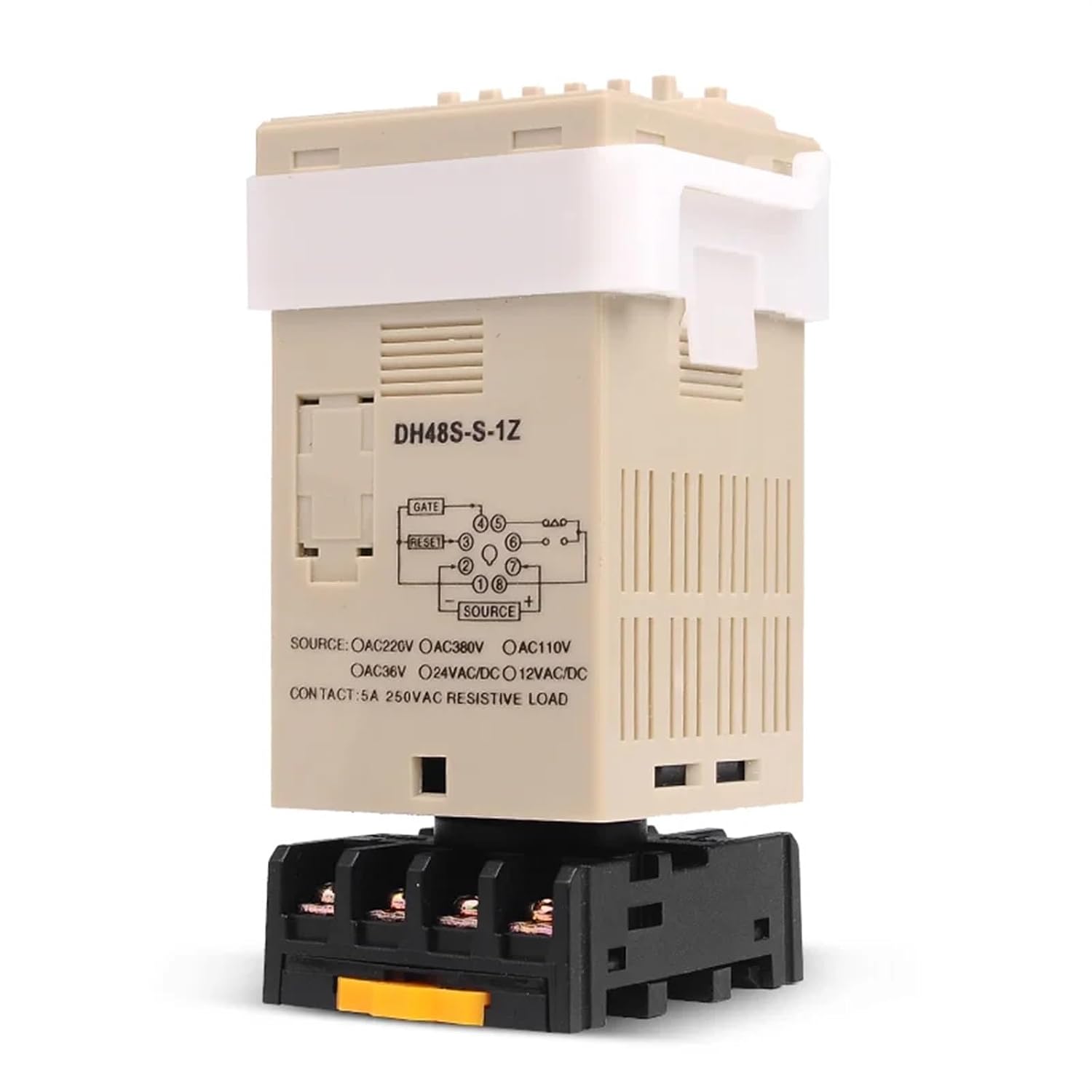

DH48S-S Repeat ON & Off Cycle Timer Delay SPDT Control Digital Time Relay 8Pins with Socket Base DH48S AC 220V 110V 24V 12V(Multi Volt 24-240V)

RelaysOrderDH48S-S Repeat Cycle Delay Timer Time Relay 8Pins with Socket BaseDH48S-S digital display time relay is a kind of circular delay type time relay suitable for control circuit with operating supply voltage below and including 380V AC 50/60Hz or operating supply voltage of 220V, and it's made as time delay component to make or break circuit according to preset time. This product uses large intergrated circuit as a processor and owns excellent EFT and ESD anti-interference performance.Terminology InterpretationCircular delay: when make and break time is set for time relay, after power-on, the product will always work in circular OFF-ON status, and the ON and OFF time is the work and break time preset.Specifications:Model numberDH48S-S-1ZSupply voltage220V, 110Vor 380V AC, 50/60 Hz; 24V DC/AC, 12V , Multi Voltage 24-240V ACTolerance-15% ... 10% at AC and -10% ... 10% at of rated supply voltagePower consumption2W maxSetting methodDial switchIndication method8-segment 4-digital displayExternal dimensions48x48x97.4 mmPerforate dimensions4510x4510mm Contact rating3A@250Vac, 5A@28VdcRepeat accuracy±0.3%, ±0.05 secSetting error±0.5%, ±0.05 secTermination8 pinsMountingPanel orDin Rail mountedMatched socketPF083AMechanical life1x106Electrical life1x105Operating temperature0 to 50 °C (32 to 122 °F)Operating humidity95% RH max, non-condensingAlias nameDH48S-STime Relay
